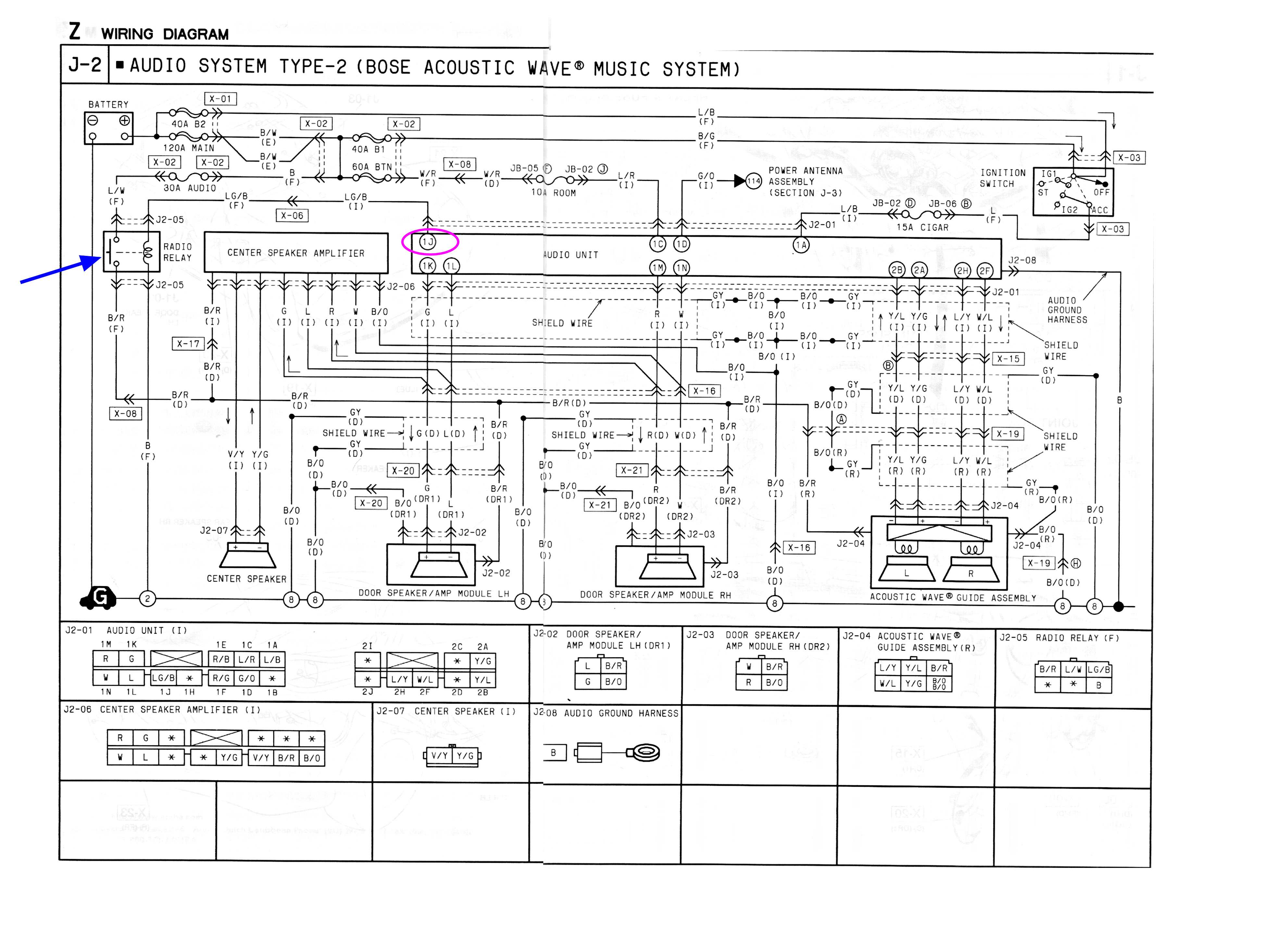

Bose Wiring Diagram

Last updated: October 29, 2003

from "flybye" on the forum:

Yep This is IT! A WHOPPING 700k. Everything and anything you ever needed to know about the system's wires. Remember to hook it up to the amp relay to ignition power and not constant power. If you hook it up to constant power, the amps will stay on ALL the time and KILL your battery.

Here are your color codes.

L  = Blue
B  = Black
BR = Brown
DL = Dark Blue
DG = Dark Green
G  = Green
GY = Gray
LB = Light Blue
LG = Light Green
N  = Natural
O  = Orange
P  = Pink
R  = Red
PU = Purple
T  = Tan
W  = White
Y  = Yellow
V  = Violet

Bose Wiring Diagram
